Economic Solution on Oriented PVC/UPVC Pipe Manufacturing Process Plastic Extrusion Line PVC Pipe Extruder

Product Description

We can supply full ranges of PVC pipe making machines, which apply for U-PVC, C-PVC, M-PVC, O-PVC material. The PVC pipe extrusion line includes conical twin screw extruder, spiral die head, vacuum tank, water tank, haul-off, no-dust cutter or planetary cutter, belling machine with O-ring sockets or rectangular sockets or U types of sockets. Our PVC pipe machine can make pipes ranging from 10mm to 800mm, wall thickness range of 1-30mm.

Production Process

Material → mixer → forced Feeding → conical double screw extruder → mould&calibrator → vacuum spay cooling tank → printer→ haul-off → cutter → stacker

The whole production line

Features

PVC/UPVC pipe making machine has the following features:

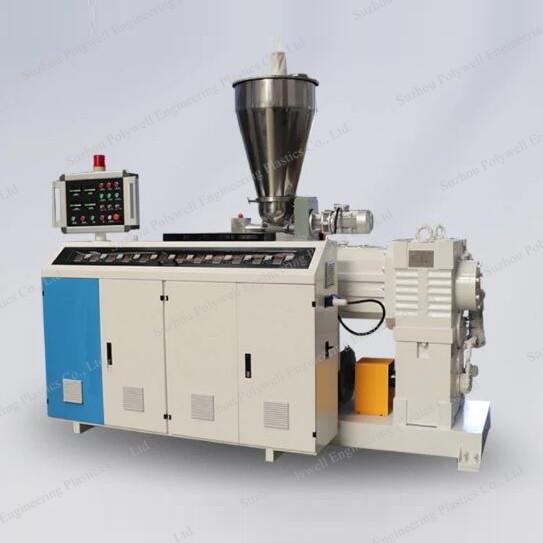

1.Extrusion Equipment of PVC/UPVC pipe making machine :Double screw extruder takes the new and efficient Screw, and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose, with a uniform material, convenient adjustment to eliminate extrusion fusion line and so on.

2.Vacuum shaping devices of PVC/UPVC pipe making machine :vacuum spray tank, spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.

3.Traction machine of PVC/UPVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements..

4.Cutting machine of plastic pipe making machine :No dust rotating knife.

5.Stacking devices of PVC/UPVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder.

6.Electrical control system for a variety of options (eg: PLC automatic control system),good production speed, stability, and the control system is simple and easy to operate.

Technical parameters

Application

1).Water supply, drainage pipelines in building;
2).Rainwater drainage pipelines in building;
3).Electrical wiring pipe in building;
4).Air conditioning condensate water systems.

Services

1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.

2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.

3. If the buyer has any problem during the operation, we will offer technical solutions.

We have been making research and development for special material of PA66GF25 thermal break strip since 2006, we have a deep understanding and rich experience of the relevant industry. We can provide our clients with special material of PA66GF25 thermal break strips of all levels. During these years, we also established a good partnership with many companies is the upstream and downstream industry.

In 2016, we together with factory of mold, extruder and factory of thermal break strips established Zhangjiagang Bangyu Engineering Plastics Co.,Ltd, which is responsible for international import and export business. In 2021, Zhangjiagang Bangyu Engineering Plastics Co.,Ltd was changed ans registered as Suzhou Polywell Engineering Plastics Co.,Ltd.
The reason why we joined Polywell together with the other two companies is that in this field, the requirements for professionalism are very high. In this field, the company that produce raw materials usually do not research machines and molds, but clients usually need all of them. We found this point, so we joined two other companies established Polywell company together. Polywell can provide a whole set of solution about thermal break strips, including raw material –PA66GF25 granules, extruders, molds, and technical support. This is our biggest advantage.

Strive for customers’ satisfaction and success, service to customers is the principle we’ve always been insisting in the last ten years, to provide our customers with high-quality products and service.

Our domestic sales volume is very stable. We are the main supplier of two listed companies which produce aluminum profile at home, and will obtain the long-term cooperation with them. Otherwise, we also have the long-term cooperation with many small manufactures.

If customers have the need of purchasing other products, we can also provide procurement service.
