Suzhou Polywell Engineering Plastics Co.,Ltd

We provide overall solutions of PA thermal break strips. Including the PA66GF25 granules, the extruder, the mold, the thermal break strips and the broken bridge aluminum frames.

Verified Supplier

7 Years

Home > Thermal Break Strip >

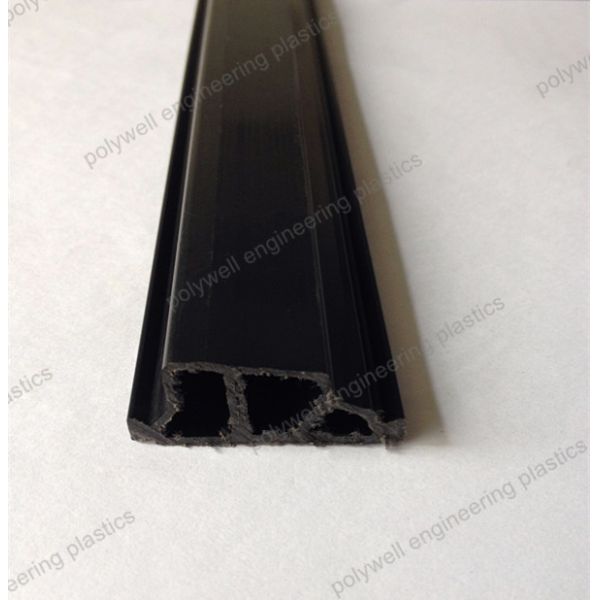

Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

Suzhou Polywell Engineering Plastics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors from wholesalers

    Buy cheap Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors from wholesalers
    • Buy cheap Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors from wholesalers
    • Buy cheap Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors from wholesalers
    • Buy cheap Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors from wholesalers

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Ask Lasest Price
    Brand Name : Polywell
    Model Number : PA66 GF25
    Certification : SGS
    Price : $0.20 - $0.4 / Meter
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000 meters per day
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Product Introduction:

    What is a thermal break strip?

    Thermal break strip, also called heat insulation strip, is a part of aluminum bridge profile. The heat-insulating bridge aluminum-plastic profile can realize the three-way sealing structure of doors and windows, and reasonably separate the water vapor chamber. It successfully realizes the pressure equalization of gas and water, and significantly improves the watertightness and airtightness of the doors and windows.

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Is a thermal break good?

    Adding a thermal break to a window or door prevents both heat and cold from transferring through the frames altogether, alleviating issues that might be caused by extreme environments. By controlling this transfer, thermally broken windows and doors improve energy efficiency.

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors
    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Characteristic of PA strips

    According to different storage time and ambient climate, the dimension of PA strips will increase slightly because of the natural moisture absorption. And the mechanical properties will change slightly too.

    So, PA strips should be transported and stored under dry conditions away from the influence of weather. (rain, direct sunlight etc.)

    Advantages of using polyamide strips:

    They provide a better thermal insulation

    They need lesser use of metals

    The polyamide strips are cost-effective

    They are easy to create thermal barriers with

    They help in resources to be conservedand can reduce operating costs

    They ensure maximum stability of the structure

    They are more than effective in resisting condensation

    They don’t require any special handling or fabrication

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Application

    It is mainly used in insulation broken bridge aluminium products, helping to reduce heat loss or heat gain through the aluminum, and has better performance in terms of power usage.

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Product Parameters

    Name
    Brand
    Material
    Nylon Thermal Break Strips
    Polywell
    PA66 GF25

    Item
    Unit
    GB/T 23615.1-2009
    PW-Technical specification
    Density
    g/cm3
    1.3±0.05
    1.28-1.35
    Linear expansion coefficient
    K-1
    (2.3-3.5)×10-5
    (2.3-3.5)×10-5
    Vicat softening temperature
    ºC
    ≥230ºC
    ≥233ºC
    Melting point
    ºC
    ≥240
    ≥240
    Testing for tensile cracks
    -
    No cracks
    No cracks
    Shore hardness
    -
    80±5
    80-85
    Impact strength(Unnotched)
    KJ/m2
    ≥35
    ≥38
    Tensile strength(longitudinal)
    MPa
    ≥80a
    ≥82a
    Elasticity modulus
    MPa
    ≥4500
    ≥4550
    Elongation at break
    %
    ≥2.5
    ≥2.6
    Tensile strength(transverse)
    MPa
    ≥70a
    ≥70a
    High temperature tensile strength(transverse)
    MPa
    ≥45a
    ≥47a
    Low temperature tensile strength(transverse)
    MPa
    ≥80a
    ≥81a
    Water resistance tensile strength(transverse)
    MPa
    ≥35a
    ≥35a
    Aging resistance tensile strength(transverse)
    MPa
    ≥50a
    ≥50a

    1. Sample water content less than 0.2% by weight.
    2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
    3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors


    Our Company

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    Our Service

    1. Expertise in the production of standard polyamide thermal break strips.
    2. Respect customers' needs, provide customized products, try best to satisfy customers' requirements.
    3. Fast service and on-time delivery
    4. Strict quality control system, each production process will be strictly supervised by us.
    5.We can provide all products on the insulation strip production line and the technical support.

    Packing & Delivery

    Packaging details:

    For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

    For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
    Delivery details: shipped in 10-15 working days after receiving the payment

    Noise And Sound Proof PA66 Thermal Break Recycled Plastic Strips Polyamide Profile for Windows and Doors

    FAQ

    About Sample

    Sample is Free, but the express fee is collect or you pay us the cost in advance.

    About MOQ

    For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.

    About Customizing Special shape of polyamide Profiles and its period

    You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.

    About Customizing Package Style and Marks

    You can customize the package style and marks.

    Why your price is higher/lower than others?

    For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.

    About warranty

    We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. . Any quality issue, we will deal with it immediately.

    About Payment

    50% T/T before production, balance before shippment.
