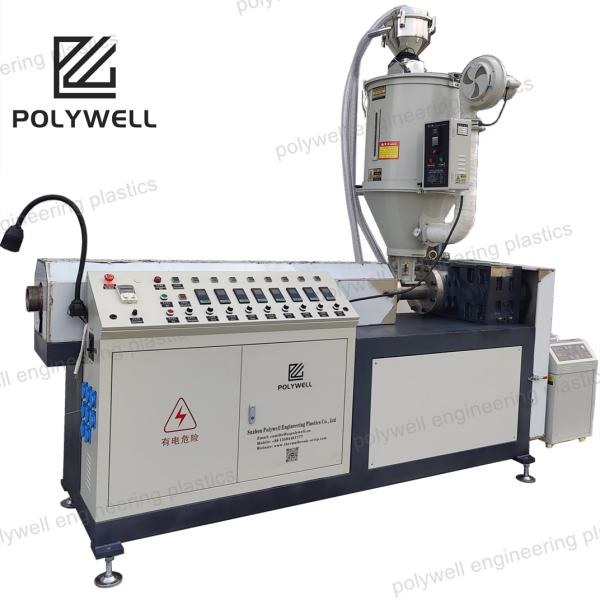

    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile

    Ask Lasest Price
    Brand Name : Polywell
    Price : USD 15,000- 18,000 / Set
    Delivery Time : 28-35 working days
    Payment Terms : T/T
    Supply Ability : 30 sets per month
    Model Number : PW-60/70/80
    Certification : SGS
    • Product Details
    • Company Profile

    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile

    Extruder For PA66 Thermal Break Profile

    Product Description

    Machine Parameters
    Material
    PA66GF25
    Production Speed
    8-14 cm/min
    Max Output
    60-80 kg/h
    Power
    380V,50Hz or customized

    Processing Technique:

    Nylon material → drying → heating → extrusion → stereotype → finished product

    characteristic

    This equipment is assembled with precision fittings such as bi-metal screw, screw barrel, imported frequency converter, imported temperature control meter and high-precision gear box. It is an excellent equipment for producing PA66 nylon extruding Profile.

    • The main part of machinery adopts high-quality cemented carbide screw to ensure the high plasticization of PA66+GF25. The main engine is energy-saving and the speed is stable. The speed of the main and auxiliary machines can be synchronized.
    • The die head is made according to German advanced technology, with short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerance and high strength.
    • Using imported temperature control meter, one meter controls one temperature control system to control the temperature accuracy to ±1C°.
    • Operating floor: stainless steel strip placement slot. Adjustable length 6 meters
    • Winding machine: The torque motor control system is used to adjust the winding tension. 500 meters or 1000 meters per roll.
    • The barrel is heated by stainless steel heater, withstanding 400 V.
    • The professional dryer makes the material and the hot air convect evenly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.

    Why use polyamide strip as thermal barrier function?

    1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminium profile window, door, curtain and walls.
    2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product

    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile

    Our advantage

    -We can make good quality strips moulds, including the complicated moulds.
    Strip quantity from 20-120 pcs.
    Strip shape from I type, C type, T type, CT type Hollow type etc.
    -We can supply the whole production line, including raw material, Parallel twin-screw granulator and the extruding machine of thermal barrier strip.

    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile
    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile
    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile, Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile

    Packing & Delivery

    Single Screw Nylon Extruder Machine Plastic Extrusion Machinary For PA66 Nylon Profile
    Packaging
    Weight
    2-5 Tons
    Packaging Details
    We will use pe film for packing and fix the machine in container, or pack it in plywooden box.
